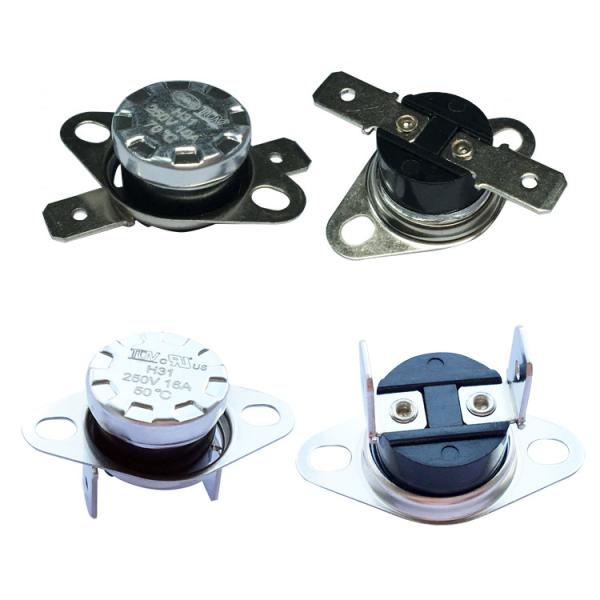

KSD301 thermostat’s Principle and structure
The main principle of KSD301 series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.
KSD301 thermostat’s application
1.Household electric appliances: water dispenser,electric water pots,toaster,dishwasher,drying machine, disinfection cabinet, microwave oven, electric kettle, electric caldron, refrigerator,air-condition,laminator etc.
2. Office equipment
3. Car seat heat, car deicer
KSD301 thermostat’s specification
1. Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A
2. Action Temperature: -10~300 ℃, Temperature accuracy: ±3 ±5 ±10℃.
3. Recovery and action temperature difference:
A. Auto reset: 8 to 100℃(Optional),Temperature accuracy: ±3 ±5 ±10℃.
B. Manual reset
4. Terminal
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
5. Life cycle: ≥100000
6. Dielectric Strength: AC50Hz 1500V / min, no breakdown blinding (Normal State)
7. Circuit resistance: ≤50mΩ
8. Insulation resistance: ≥100mΩ
9. Normally closed or Normally open
10. Protection degree: IP00
11. Two kinds of body: plastic or ceramic.
12. Temperature sensor face: Aluminum cap or copper head.
13. Holder: without holder, free holder, fixed holder.
KSD301 thermostat’s competitive advantage
Stable performance; High accuracy; Small size and light weight; safe and reliable; no arcing;long life and less disturb to wireless.
