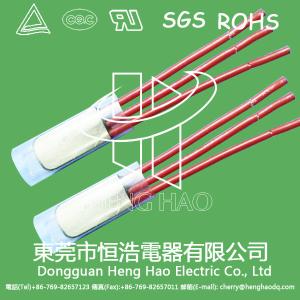

Three Phase Motor Thermal Protector , 210V / 380V Temperature Controller Thermostat

Name: Three Phase Motor Thermal Protector 210V 380V Temperature Controller Thermostat
Brand: HENG HAO
Price: 5.0 USD

Brand Name : HENG HAO

Model Number : BR

Certification : CQC TUV

Place of Origin : MADE IN CHINA

MOQ : 1000pcs

Price : USD 5.0 to 1.0 per piece

Payment Terms : Western Union, T/T, L/C

Packaging Details : carton 43*23*23cm

Voltage current : 380V 2.2KW 5.5KW 7.5KW

Temperature range : 50 to 150C

Contact Now

Three phase motor thermal protector BR use for three phase motor temperature protector

The three-phase load thermal protector is specially designed for three-phase motors with small size, good performance, high cost performance and convenient installation. The three-phase motor can be effectively protected from overheating. BR three-phase load thermal protector has BR8A small current, BR18A medium large current and BR60A large current three specifications for choice. BR three-phase load thermal protector is certified by TUV and CQC.

BR small current	BR medium current	BR large current
Rated voltage: 210V/380V	Rated voltage: 210V/380V	Rated voltage: 210V/380V
19.5 * 9.3 * 4.2 mm	22 * 11 * 5mm	28 * 13 * 6.5mm
#16 to 18 3135 length 70mm	#16 to 18 3135 length 70mm	#16 to 18 3135 length 70mm

BR three phase thermal protector's Specification

Model	Power (KW) 380V per an hour	Current (A) 380V per an hour	Temperature (°C)	Size (mm)
Model	Power (KW) 380V per an hour	Current (A) 380V per an hour	Temperature (°C)	L	H	D	Lead wire
KW 0.55	0.55	1.6	40°C——150°C	27	18	6	70
KW 0.75	0.75	2	40°C——150°C	27	18	6	70
KW 1.1	1.1	3	40°C——150°C	27	18	6	70
KW 1.5	1.5	4	40°C——150°C	27	18	6	70
KW 2.2	2.2	5.5	40°C——150°C	32	21.5	7	80
KW 3	3	7	40°C——150°C	32	21.5	7	80
KW 4	4	9	40°C——150°C	32	21.5	7	80
KW 5.5	5.5	12	40°C——150°C	37	26.5	7	90
KW 7.5	7.5	15.7	40°C——150°C	47	29.5	9	90
KW 9.2	9.2	20	40°C——150°C	53	32	10.5	100
KW 11	11	22.5	40°C——150°C	53	32	10.5	100
